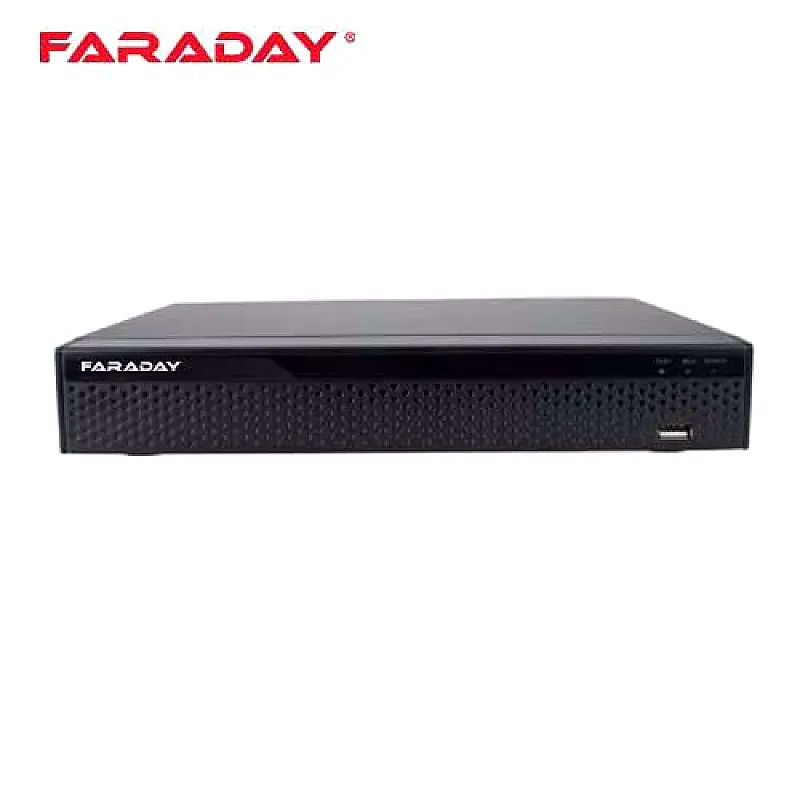

Faraday FDX-5016NVR-4K-S1 mrežni snimač za 16CH
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 16CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA |
Output | 1 Port RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (two-way) |
Alarm | |
Sensor Input | N/A |
Output | N/A |
Motion Detection | 16 Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
Display | |
HD Output1 | 1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz |
HD Output2 | N/A |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Display Split | 16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720),D1 (720×576/720×480) |
Record Rate | PAL :4K@10CHx25fps,5MP@16CH×25fp,4MP@16CHx25fp,3MP@16CH×25fp,1080P@16CH×25fp, 960P@16CH×25fp,720P@16CH×25fp, D1@16CH×25fp NTSC: 4K@10CHx30fps,5MP@16CH×30fp,4MP@16CH×30fp,3MP@16CH×30fp,1080P@16CH×30fp, 960P@16CH×30fp, 720P@16CH×30fp, D1@16CH×30fp |
Record Mode | Manual\Timer\Motion Detection\Smart Event |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps, 16CH D1@30fps |
Decode Capability | 4CH 1080P(1920x1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Timing Video, Motion Detection, Tag search,Smart Event,Pictrue,Log |
Playback Functions | Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
Backup Mode | USB Device/Network |
Network | |
Interface | 1xRJ45 10M/100M/1000M Adaptive Ethernet Interface |
Incoming Bandwidth | 100MB |
Network Functions | IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
Onvif | onvif S,onvif T |
Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | N/A |
WIFI | N/A |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | N/A |
General | |
Language UI | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | N/A |
Power consumption | DC12V 2A ≤20W (Without Hard Disk) |
Working Environment | -10~55℃/10~90% |
Dimension(W×D×H) | 260*215*43(mm) |
Weight | 2kg(without HDD) |
Detalji proizvoda
Broj kanala:
16CH
HDD Slots:
1 Slots
Maksimalna rezolucija:
4K
Ethernet port:
1xGigabit
